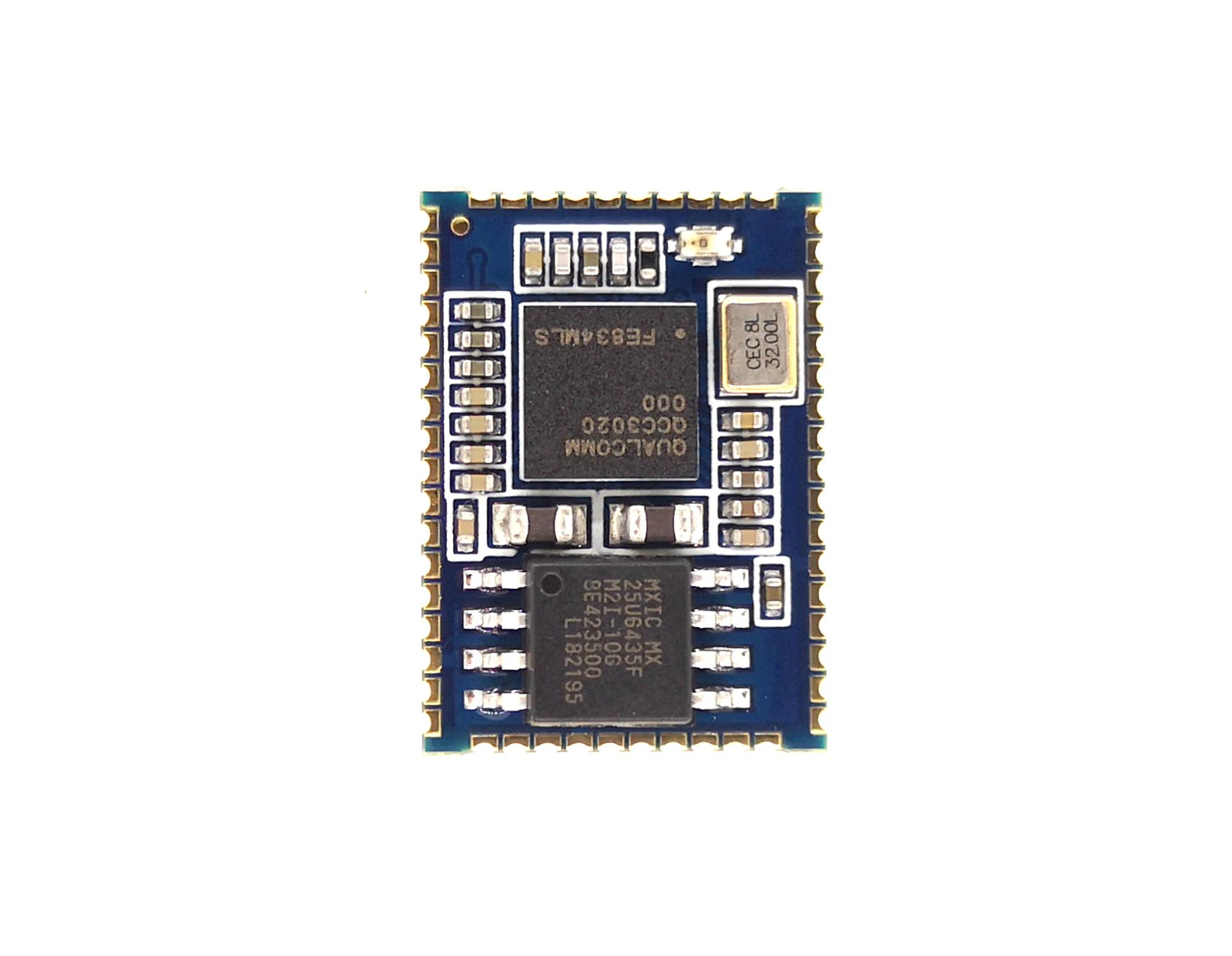

EC6Q324(BTM324) QCC3024 Bluretooth 5.1 Audio Module I2S IIS SPDIF
Details
Default firmware:
1. Support SBC and AAC decoding, no call function, optional I2S and analog output
2. Key Description:
● SYS_ CTRL: high-level startup, low-level shutdown, startup will automatically enter the pairing mode
● pio2: short press to pause the playback, long press for 3 seconds to enter the pairing, and long press for 5 seconds to clear the pairing record
● pio3: short press the previous song and long press the volume to decrease
● Pio4: press one song for a short time and press the volume for a long time
● pi5: connected, not connected
● pio19: audio output high level, no audio low level
3. Description of indicator light:
● Bluetooth not connected: LED0 LED1 alternate flash
● Bluetooth connected: LED1 is always on
1. Support SBC and AAC decoding, no call function, optional I2S and analog output
2. Key Description:
● SYS_ CTRL: high-level startup, low-level shutdown, startup will automatically enter the pairing mode
● pio2: short press to pause the playback, long press for 3 seconds to enter the pairing, and long press for 5 seconds to clear the pairing record
● pio3: short press the previous song and long press the volume to decrease
● Pio4: press one song for a short time and press the volume for a long time
● pi5: connected, not connected
● pio19: audio output high level, no audio low level
3. Description of indicator light:
● Bluetooth not connected: LED0 LED1 alternate flash
● Bluetooth connected: LED1 is always on
● Bluetooth audio playback: LED1 is always on
Note: the use of USB sound card must be connected to four wires of the module, usbdp, usbdn, vchg and GND
