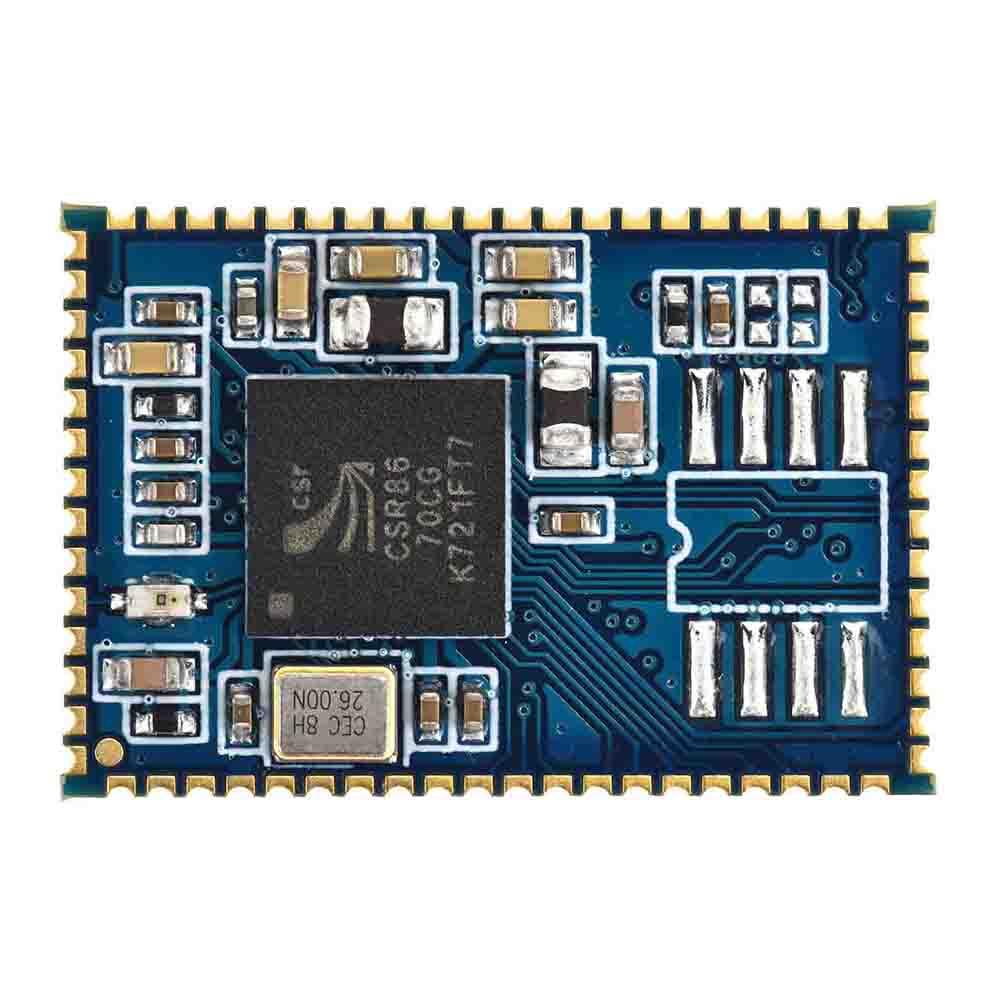

EM6C870B(BTM870-B) CSR8670 Bluetooth audio module APTX

EM6C870B bluetooth mdoule  with CSR8670 chip，built in16M FLASH。support aptx、aptx-ll，Good quality sond tone.

Warm Reminder：

1. The datasheet and schematic diagram can be offered.

2. The audio of CSR Bluetooth module is differential output, so it is necessary to add op amp or oto amplifier circuit to single end output (left channel, right channel, audio common terminal).

3. The actual pin corresponding to the PIO port needs to check the datasheet by yourself!

Default program description:

1.Bluetooth name： CSR8670

2. Power on mode:

The MFB starts at the rising edge and turns off at the falling edge (the MFB can be powered on and started by pulling it up after it is powered on). When the MFB is started up, it will automatically enter the pairing mode if it fails to connect.

3. Key Description:

PIO0：short press play pause, long press for 3 seconds to enter pairing, long press for 5 seconds to clear pairing record

PIO1：short press volume-

PIO2：short press volume+

PIO3：short press last

PIO4：short press next

 PIO6：Power amplifier control enable pin (output high level 1.8V with audio output)

4.  Indicator light Description:

Bluetooth not connected: LED0 LED1 alternate flash

Bluetooth connected: LED1 always on

Bluetooth audio playback: LED1 always on

Module manual download:

Developing burning tools:       CSR-USB-SPI programming simulation burner full function version

Qualcomm bluetooth audio module selection table：

Part Number		Chip type	BT Ver	Stereo	aptX	aptX-HD	ANC	TWS	TWM	CVC	I2S	SPDIF	ANT	Manual	Buy
EM6C835A		CSR8635	4.1	√	X	X	X	X	X	X	X	X	√
EM6C835B		CSR8635	4.1	√	X	X	X	X	X	X	X	X	X
EM6C625A		CSRA64215	4.2	√	√	X	X	√	X	X	√	X	√
EM6C625B		CSRA64215	4.2	√	√	X	X	√	X	X	√	X	X
EM6C870B		CSR8670	5.0	√	√	X	X	√	X	*	√	√	X
EM6C875B		CSR8675	5.0	√	√	*	X	√	X	*	√	√	X
EM6Q303A		QCC3003	5.0	√	X	X	X	X	X	√	√	X	√
EM6Q308A		QCC3008	5.0	√	√	X	X	√	X	√	√	X	√
EM6Q308B		QCC3008	5.0	√	√	X	X	√	X	√	√	X	X
EM6Q320B		QCC3020	5.0	X	X	X	X	√	X	√	√	X	X
EM6Q321B		QCC3021	5.0	√	X	X	X	√	X	√	√	√	X
EM6Q334B		QCC3034	5.0	√	√	√	X	X	X	√	√	X	X
EM6Q340B		QCC3040	5.0	X	√	√	√	X	√	√	√	X	X
EM6Q525B		QCC5125	5.0	√	*	*	*	√	X	*	√	√	X
EM6Q526B		QCC5126	5.0	√	*	*	*	√	X	*	√	√	X
EM6Q544B		QCC5144	5.0	√	*	*	*	X	√	*	√	√	X
Data Direction
Chip type			The main control chip model of the module
BT Ver			Bluetooth version
Stereo			"√" support Bluetooth Stereo  "X" Support Bluetooth mono
aptX			Improve sound quality, reduce delay, support 16bit / 48K audio (Note: SBC is 16bit / 44.1k)
aptX-HD			Improve sound quality, reduce delay, support 24bit / 48K audio
ANC			Active noise reduction, specific effects need to be coordinated with reasonable structure adjustment, default firmware does not open this function, can be customized development
TWS			True wireless stereo ,phone can connect two wireless earphone at the same，This function is not enabled by default firmware and can be customized
TWM			True wireless mirroring TWS upgrated version，More intelligent master-slave switch, default firmware does not enable this function, can be customized development
CVC			Call echo cancellation algorithm, the specific effect needs to cooperate with reasonable structure adjustment, default firmware does not enable this function, can be customized development.
I2S			I2S Digital audio output
SPDIF			SPDIF Digital audio output
ANT			PCB antenna
Mark			"*"it means that need license
